Joseph Mallord William TurnerDetails of the Decorations of Raphael's Loggia in the Vatican: the Second External Pier 1819

Share this artwork

Artwork details

Artist
Title
Details of the Decorations of Raphael's Loggia in the Vatican: the Second External Pier
From Tivoli to Rome Sketchbook
Turner Bequest CLXXIX
Date 1819
MediumGraphite on paper
Dimensionssupport: 186 x 112 mm
Collection
Tate
Acquisition Accepted by the nation as part of the Turner Bequest 1856
Reference
D14957
Turner Bequest CLXXIX 15
View this artwork by appointment, at Tate Britain's Prints and Drawings Rooms

Catalogue entry

Joseph Mallord William Turner 1775–1851
Folio 15 Recto:
Details of the Decorations of Raphael’s Loggia in the Vatican: the Second External Pier 1819
D14957
Turner Bequest CLXXIX 15
Pencil on white wove paper, 186 x 112 mm
Inscribed by the artist in pencil with various notes on the loggia decorations [see main catalogue entry]
Inscribed by ?John Ruskin in blue ink ‘15’ bottom right, descending right-hand edge
Stamped in black ‘CLXXIX 15’ bottom left, descending left-hand edge

Accepted by the nation as part of the Turner Bequest 1856
One of the most significant series of studies dating from Turner’s 1819 trip to Rome was the sequence of on-the-spot pencil sketches relating to the Loggia of Raphael, a colonnaded porch on the second floor of the Vatican’s Apostolic Palace, decorated by Raphael (1483–1520) and his studio. The sixteenth-century loggia, which looks out over the Cortile San Damaso and St Peter’s Square, is approximately 65 metres long and 4 metres wide (215 by 13 feet) and comprised of thirteen bays. Each of the square vaults of the ceiling contains four frescoes of Biblical scenes, popularly known as ‘Raphael’s Bible’, illustrating Old and New Testament scenes from the Creation to the Last Supper. Meanwhile, the spandrels, lunettes, walls, pilasters and window piers are covered with stuccowork and painted grotesque decorations, ornamental arabesque patterns interspersed with human and animal figures, modelled after ancient Roman wall paintings such as those in Nero’s Domus Aurea on the Palatine Hill in Rome. The loggia was originally open to the elements causing the gradual deterioration of the frescoes, but in 1816 the windows had been glazed, a fact which is not obviously apparent within Turner’s sketches. Several scholars have argued that his interest in the loggia may have been prompted by contemporary British anxieties regarding the poor condition of the frescoes.1
Turner made a closely detailed visual record of the loggia, particularly concentrating on the southern end of the interior and the decoration of the first three bays and window arches, see folios 13 verso–21 (D14955–D14965). From these drawings evolved the artist’s first finished oil painting following his Italian tour, the vast canvas Rome from the Vatican. Raffaelle Accompanied by La Fornarina, Preparing his Pictures for the Decoration of the Loggia exhibited 1820 (Tate, N00503).2 It has been widely suggested that Turner thought of the idea for the picture whilst he himself was actually sketching there.3 However, the precise nature of these studies, focusing almost exclusively on the first three bays of the loggia, strongly suggests that in fact the artist had already conceived the theme before commencing his sketching campaign and was specifically gathering material with the concept already well advanced in his mind. Virtually every element recorded within his drawings was employed within the composition of the finished painting, and there are no sketches extraneous to this purpose. As Cecilia Powell has discussed, Turner was also able to cross-reference his on-the-spot sketches with detailed engravings of Raphael’s loggia which he borrowed from the Royal Academy during the later stages of the painting’s development in April 1820.4

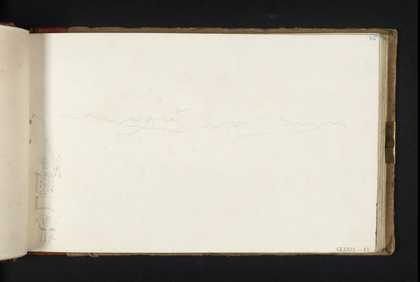

The sketches on this page relate to his painted recreation of the loggia on the right-hand side of Rome from the Vatican. They depict the fresco and stucco decorations on the second external pier of the loggia (i.e. the pillar between the first and second windows from the end) and comprise three distinct groups, from top left to bottom right:
a.
The sketches in the top left-hand corner and top centre represents details of the stucco and grotesque decorations from the lateral side (northern or right-hand side as you face the interior wall) of the second external pier.5 On the left is the upper section of the pilaster which contains stucco medallions including, from top to bottom: a centaur with a trumpet; Jove; fighting Amazons seated on horses; and the figure of an artist working in the Loggia. Before the windows were enclosed with glass the fresco details suffered damage from exposure to the elements and are now much faded. The drawing continues at the top of the page on the right with the lower part of the pilaster.6 Turner has annotated the study with various colour notes including, from the top to the bottom of the pilaster: ‘G Bor’, ‘Bronze’, ‘G Balls’, ‘Lake’, ‘Purple’, ‘Orange’, ‘Landscape’, ‘Red Wall’, ‘Lilac’, ‘ov’, ‘Green’, ‘P | W’, ‘P’, ‘violet’, ‘purple’ and ‘Red B’.
b.
The central sketch depicts a bird, inscribed ‘Green’, a detail from the base of the pilaster.
c.
The final group of sketches is inverted at the bottom centre and right-hand side of the page. They represent details of the stucco and grotesque decorations of the facing (front) side of the second external pilaster.7 Turner has executed a record of the upper part along the full length of the page and then continued the drawing with the lower section beside it. The sketch is variously inscribed, from the top to the bottom of the pilaster: ‘3 the Pier’, ‘Green’, ‘Purple’, ‘G Bor’, ‘Dado solid’, ‘Dado’, ‘Purple’, ‘Red with | Blue | candelabra’, ‘D B’ and ‘Purple B’.
Further studies related to the evolution of Rome from the Vatican can be found on folios 21 verso and 25–26 (D14966 and D14970–D14972), as well as an elaborate compositional drawing in pen and ink in the Rome C. Studies sketchbook (Tate D16368; Turner Bequest CLXXXIX 41).

Nicola Moorby
January 2010
