As deciphered by Finberg, the two sure-handed and precise drawings on this vertically orientated page demonstrate coastal artillery forts on the Hampshire coast: Calshot Castle and Hurst Castle.1 Turner has annotated each one accordingly with a clear inscription.

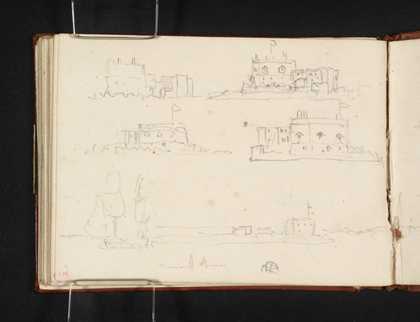

In a move repeated across several of the following pages (folios 55 verso, 56 recto, 56 verso, and 57 recto; D17297–D17300) and also occupying a later section of the sketchbook (folios 77 verso, 78 verso, 79 recto, and 80 verso; D17388, D17340–D17341, and D17344) Turner has copied each of these compositions from The Little Sea Torch, an illustrated maritime text by Richard Bougard, translated from the French by J.T. Serres and published in London in 1801.2 For more detailed information about the publication, and an interrogation of Turner’s use of it, see the sketchbook Introduction. Both drawings on this page are taken from engravings on Plate 15. Calshot Castle is numbered 6 on the printed page, and titled ‘Calshot Castle at the entrance of Southampton River’.3 Hurst Castle is illustration number 7.4
At the top of the page is the former of the two landmarks. Built by Henry VIII in 1539 as part of his maritime defence programme,5 Calshot Castle was one of a vast number of coastal fortifications instated along the south coast of England in anticipation of French or Spanish invasion.6 It was manned consistently for over four hundred years as a functioning military base.7
Turner makes his drawing of Calshot Castle with a thick, soft or perhaps blunt pencil. The lines are neat and considered. In a direct emulation of the illustration in The Little Sea Torch, a shadow is cast across half of the smaller building on the left and windows in both structures are marked. Turner even briefly describes the flag hoisted on a pole affixed to the structure in the original illustration, although he omits surface decoration completely.
Below this is a copy of Hurst Castle. Another of Henry VIII’s artillery forts, it was the most advanced of its kind at the time of construction and was completed in 1544.8 Also in Hampshire, it defends the western approach to the Solent. In 1648 Charles I was imprisoned there before his trial and execution in London. During the Napoleonic wars the design was modernised, and in 1870s armoured wings were added.9
