Joseph Mallord William Turner

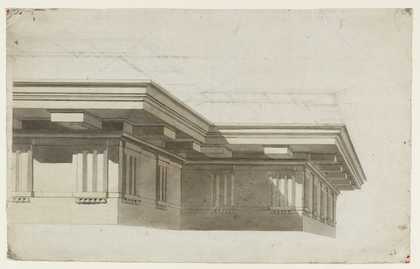

Lecture Diagram 73+: Entablature

c.1810

Image released under Creative Commons CC-BY-NC-ND (3.0 Unported)

License this image

In Tate Britain

Prints and Drawings Room

View by appointment
Artist
Joseph Mallord William Turner 1775–1851
Part of
I. Numbered Perspective Diagrams
Medium
Chalk, pen and ink and watercolour on paper
Dimensions
Support: 402 x 654 mm
Collection
Tate
Acquisition
Accepted by the nation as part of the Turner Bequest 1856
Reference
D17100
Turner Bequest CXCV 129

Catalogue entry

Prepared by Turner for his lectures as Professor of Perspective at the Royal Academy, Diagram 73+ is associated by Maurice Davies with a group of diagrams numbered 60–73, 75 and 76 (see Tate D17085–D17097, D17099, D17101) all dealing with the production of shadows. Although some of the diagrams are mentioned at various points in the manuscripts, many are not discussed at all, leading Davis to conclude that they may have been part of a lecture that is now lost, which ‘could have been given in 1811, possibly as part or all of lecture 4 or 5’.
Technical notes:
There are indications that Turner used a sharp edge (perhaps the nib of a pen) to trace elements of the diagram and to add perspective lines in order to make another, now unknown diagram.
Peter Bower states that the sheet is Pott Quad size paper made by Joseph Ruse at Upper Tovil Mill, Maidstone, Kent.1 Elsewhere, Bower writes that the Ruse papers used for the diagrams are not very well made. ‘Indeed the majority of these generally large and heavy weight papers were probably sold as “outsides”. This drawing is on a cut-down sheet, originally made in a size of paper hardly ever found after this date: Pott Quad, nominally 32 x 25 in and most commonly made for printing, sometimes for writing, and never, as far as [Bower] can ascertain, for drawing. Given the way the colour has been worked on this particular surface [Bower] would judge this batch of Ruse Pott Quad had been made as a writing paper’.
1
Notes in Tate catalogue files.
Verso:
See Tate D40010.

Andrea Fredericksen
June 2004

Supported by The Samuel H. Kress Foundation

Revised by David Blayney Brown
January 2012

Read full Catalogue entry

Explore

You might like

Joseph Mallord William Turner, ‘Lecture Diagram 55: Perspective Construction of a Tuscan Entablature’ c.1810

Joseph Mallord William Turner Lecture Diagram 55: Perspective Construction of a Tuscan Entablature

c.1810
View by appointment D17076
Joseph Mallord William Turner, ‘Perspective Study of a Doric Entablature’ c.1810

Joseph Mallord William Turner Perspective Study of a Doric Entablature

c.1810
View by appointment D17068
Joseph Mallord William Turner, ‘Lecture Diagram 50: Doric Entablature in Perspective (after Thomas Malton Senior)’ c.1810

Joseph Mallord William Turner Lecture Diagram 50: Doric Entablature in Perspective (after Thomas Malton Senior)

c.1810
View by appointment D17067
Joseph Mallord William Turner, ‘Lecture Diagram 56: Tuscan Entablature in Perspective’ c.1810

Joseph Mallord William Turner Lecture Diagram 56: Tuscan Entablature in Perspective

c.1810
View by appointment D17079
Joseph Mallord William Turner, ‘Lecture Diagram 51: Perspective Construction of a Doric Entablature (after Thomas Malton Senior)’ c.1810

Joseph Mallord William Turner Lecture Diagram 51: Perspective Construction of a Doric Entablature (after Thomas Malton Senior)

c.1810
View by appointment D17069
Joseph Mallord William Turner, ‘Lecture Diagram 42: Perspective Construction of a Tuscan Entablature’ c.1810

Joseph Mallord William Turner Lecture Diagram 42: Perspective Construction of a Tuscan Entablature

c.1810
View by appointment D17062
Joseph Mallord William Turner, ‘Lecture Diagram 8/2: Elevation of a Stoa or Portico (after James Stuart)’ c.1810

Joseph Mallord William Turner Lecture Diagram 8/2: Elevation of a Stoa or Portico (after James Stuart)

c.1810
View by appointment D17141
Joseph Mallord William Turner, ‘Perspective Study of a Corinthian Entablature’ c.1810

Joseph Mallord William Turner Perspective Study of a Corinthian Entablature

c.1810
View by appointment D17080
Joseph Mallord William Turner, ‘Lecture Diagram 41: Perspective Construction of a Tuscan Column’ c.1810

Joseph Mallord William Turner Lecture Diagram 41: Perspective Construction of a Tuscan Column

c.1810
View by appointment D17060
Joseph Mallord William Turner, ‘Indications of Transfer Process’ c.1810

Joseph Mallord William Turner Indications of Transfer Process

c.1810
View by appointment D40018
Joseph Mallord William Turner, ‘Tracing of a Perspective Construction of a Tuscan Entablature’ c.1810

Joseph Mallord William Turner Tracing of a Perspective Construction of a Tuscan Entablature

c.1810
View by appointment D17077
Joseph Mallord William Turner, ‘Lecture Diagram 8/9: The Screen of Carlton House, Pall Mall, London’ c.1810

Joseph Mallord William Turner Lecture Diagram 8/9: The Screen of Carlton House, Pall Mall, London

c.1810
View by appointment D17143
Joseph Mallord William Turner, ‘Lecture Diagram 8/1: Ground Plan of a Stoa or Portico (after James Stuart)’ c.1810

Joseph Mallord William Turner Lecture Diagram 8/1: Ground Plan of a Stoa or Portico (after James Stuart)

c.1810
View by appointment D17140
Joseph Mallord William Turner, ‘Lecture Diagram 14: The Terminology of Perspective of Joseph Moxon’ c.1810

Joseph Mallord William Turner Lecture Diagram 14: The Terminology of Perspective of Joseph Moxon

c.1810
D17028

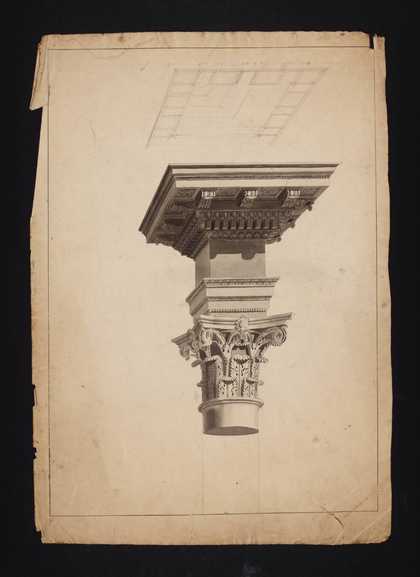

Joseph Mallord William Turner, ‘Lecture Diagram 53: Corinthian Capital in Perspective (after Thomas Malton Senior)’ c.1810
