Joseph Mallord William Turner

Lecture Diagram 8/1: Ground Plan of a Stoa or Portico (after James Stuart)

c.1810

Image released under Creative Commons CC-BY-NC-ND (3.0 Unported)

License this image

In Tate Britain

Prints and Drawings Room

View by appointment
Artist
Joseph Mallord William Turner 1775–1851
Part of
I. Numbered Perspective Diagrams
Medium
Pen and ink and watercolour on paper
Dimensions
Support: 1000 x 672 mm
Collection
Tate
Acquisition
Accepted by the nation as part of the Turner Bequest 1856
Reference
D17140
Turner Bequest CXCV 169

Display caption

Turner used this ground plan of a classical stoa or portico to show the vantage point, indicated by the word ‘eye’ at the bottom, used for the next two diagrams (shown to the right). A comparison of the drawings allowed him to illustrate how some free-standing columns (circles) and attached columns (squares) are obscured in a side elevation of the building.

Gallery label, September 2004

Does this text contain inaccurate information or language that you feel we should improve or change? We would like to hear from you.

Catalogue entry

As Professor of Perspective at the Royal Academy, Turner used part of Lecture 1 to show his students why their draughtsmanship would benefit from an understanding of the subject. To achieve this he produced three diagrams (see also Tate D17141 and D17142; Turner Bequest CXCV 170, 171) based on illustrations from James ‘Athenian’ Stuart’s and Nicholas Revett’s The Antiquities of Athens (1762, vol.I, chap.V. pls II and IV). This four-volume treatise had inspired the revival of the Greek architectural style in Europe and North America by providing motifs and designs of previously-undocumented classical buildings. Stuart and Revett used measured plans and elevations to illustrate the exact layout and dimensions of each structure. Although Turner praises the publication as ‘a most respectable work,’ he argues that such geometrical drawings have their limitations and that draughtsmen should also prepare perspective views to present a varied and more accurate impression of a building in its surrounding space.1
Diagram 8/1 is a ground plan of a classical building described by Stuart and Revett as ‘a stoa or portico, commonly supposed to be the remains of the Temple of Jupiter Olympus’ (the Olympieion). The plan allows Turner to show the vantage point (indicated by the word ‘eye’ at the bottom) used in his other two diagrams of this structure. A comparison of the drawings enables him to reveal how some free-standing columns (circles) and attached columns (squares) are obscured in a side elevation of the building. He does not discuss the issue in the version of Lecture 1 delivered in 1811, although a reference made in pencil to ‘Stuart’s Athens Drawing’ in the margin of his text indicates that he may have introduced the topic in subsequent revisions of the material.2 A later manuscript also used for lecturing refers directly to all three diagrams.3 The material is also discussed in a lecture manuscript titled ‘Light, Shade, and Reflexies’.4 There is a preliminary sketch in a manuscript filled with Turner’s notes.5
1
Turner, ‘Royal Academy Lectures’, circa 1807–38, Department of Western Manuscripts, British Library, London, ADD MS 46151 J folio 12.
2
Turner, ‘Royal Academy Lectures’, circa 1807–38, Department of Western Manuscripts, British Library, London, ADD MS 46151 K folio 13 verso.
3
Turner, ‘Royal Academy Lectures’, circa 1807–38, Department of Western Manuscripts, British Library, London, ADD MS 46151 J folio 13.
4
Private collection, folios 21–2.
5
Turner, ‘Royal Academy Lectures’, circa 1807–38, Department of Western Manuscripts, British Library, London, ADD MS 46151 BB folio 33.
1
Notes in Tate catalogue files.

Andrea Fredericksen
June 2004

Revised by David Blayney Brown
January 2012

Read full Catalogue entry

Explore

You might like

Joseph Mallord William Turner, ‘Lecture Diagram 8/2: Elevation of a Stoa or Portico (after James Stuart)’ c.1810

Joseph Mallord William Turner Lecture Diagram 8/2: Elevation of a Stoa or Portico (after James Stuart)

c.1810
View by appointment D17141
Joseph Mallord William Turner, ‘Lecture Diagram 8/3: Elevation of a Stoa or Portico (after James Stuart)’ c.1810

Joseph Mallord William Turner Lecture Diagram 8/3: Elevation of a Stoa or Portico (after James Stuart)

c.1810
View by appointment D17142
Joseph Mallord William Turner, ‘Lecture Diagram: Ground Plan of a Building’ c.1823–8

Joseph Mallord William Turner Lecture Diagram: Ground Plan of a Building

c.1823–8
View by appointment D17023
Joseph Mallord William Turner, ‘Lecture Diagram: Ground Plan of a Building’ c.1823–8

Joseph Mallord William Turner Lecture Diagram: Ground Plan of a Building

c.1823–8
View by appointment D17024
Joseph Mallord William Turner, ‘Lecture Diagram 40*: Perspective Method for a Circle (after Thomas Malton Senior)’ c.1810

Joseph Mallord William Turner Lecture Diagram 40*: Perspective Method for a Circle (after Thomas Malton Senior)

c.1810
D17057
Joseph Mallord William Turner, ‘Lecture Diagram 41: Perspective Construction of a Tuscan Column’ c.1810

Joseph Mallord William Turner Lecture Diagram 41: Perspective Construction of a Tuscan Column

c.1810
View by appointment D17060
Joseph Mallord William Turner, ‘Lecture Diagram: Hamilton’s Harmonic Proportions’ c.1810–28

Joseph Mallord William Turner Lecture Diagram: Hamilton’s Harmonic Proportions

c.1810–28
View by appointment D17133
Joseph Mallord William Turner, ‘A Ground Plan and Diagrams’ c.1817–18

Joseph Mallord William Turner A Ground Plan and Diagrams

c.1817–18
D13207
Joseph Mallord William Turner, ‘Tracing of an Elevation of a Stoa or Portico’ c.1810

Joseph Mallord William Turner Tracing of an Elevation of a Stoa or Portico

c.1810
D17132

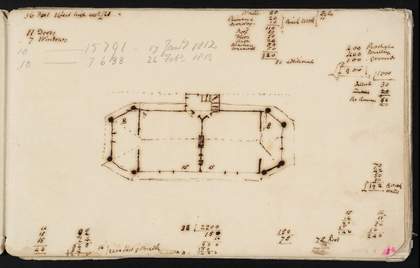

Joseph Mallord William Turner, ‘A Ground Plan Design for Sandycombe Lodge, Twickenham’ c.1809–12

Joseph Mallord William Turner A Ground Plan Design for Sandycombe Lodge, Twickenham

c.1809–12
View by appointment D08967
Joseph Mallord William Turner, ‘Lecture Diagram 23: Geometry of a Parabola (after William Emerson or John Hamilton)’ c.1810

Joseph Mallord William Turner Lecture Diagram 23: Geometry of a Parabola (after William Emerson or John Hamilton)

c.1810
View by appointment D17037
Joseph Mallord William Turner, ‘Lecture Diagram 12: Parallel Lines with a Series of Converging Lines (?after Samuel Wale)’ c.1810

Joseph Mallord William Turner Lecture Diagram 12: Parallel Lines with a Series of Converging Lines (?after Samuel Wale)

c.1810
View by appointment D17026
Joseph Mallord William Turner, ‘Lecture Diagram 51: Perspective Construction of a Doric Entablature (after Thomas Malton Senior)’ c.1810

Joseph Mallord William Turner Lecture Diagram 51: Perspective Construction of a Doric Entablature (after Thomas Malton Senior)

c.1810
View by appointment D17069

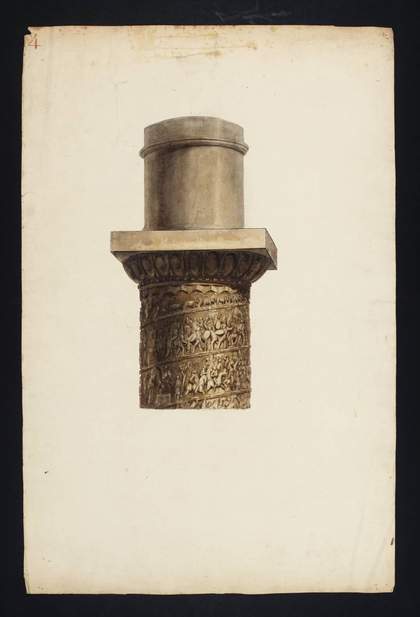

Joseph Mallord William Turner, ‘Lecture Diagram 4: Top of Trajan’s Column, Rome’ c.1810
